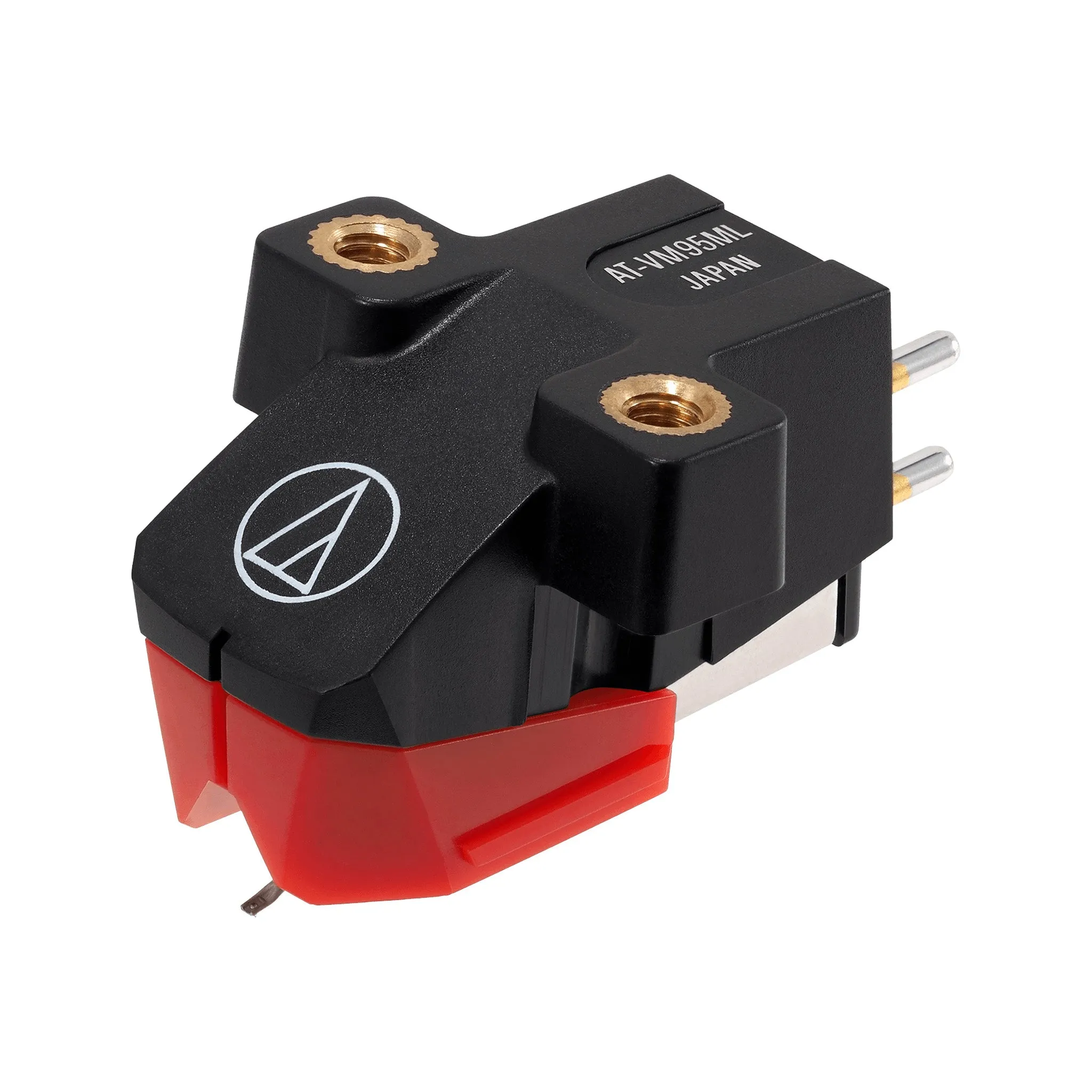

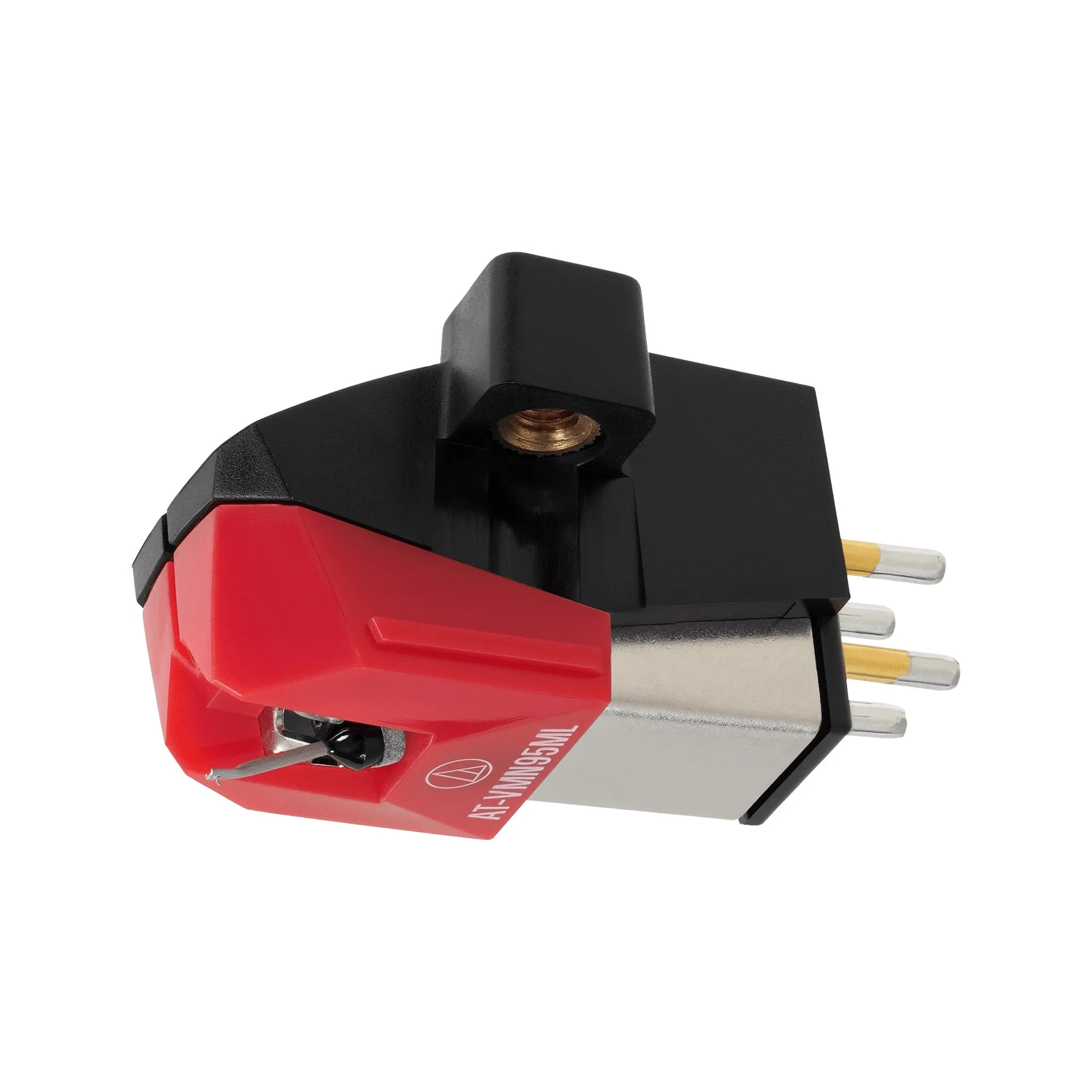

This VM95 Series cartridge with 2.2 x 0.12 mil Microlinear stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features:
- VM Series dual magnet cartridge with 2.2 x 0.12 mil Microlinear stylus
- Aluminium cantilever
- Durable low-resonance polymer housing
- Threaded inserts in the cartridge body enable the cartridge to be mounted to the headshell with just two screws – no nuts required
- Compatible with any AT-VMN95 replacement stylus
Specifications:
- Frequency Response: 20-25,000 Hz
- Channel Separation: 23 (dB at 1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Nude square shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 1.5 dB (1 kHz)
- Stylus Shape: 2.2 x 0.12 mil Microlinear
- Cantilever: Aluminium pipe
- Static Compliance: 20 x 10 – 6 cm / dyne
- Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 6.1g
- Mounting Feature: Half-inch mount
- Recommended Load Capacitance: 100 to 200 pF
- Replacement Stylus: AT-VMN95ML
- Stylus Size: 2.2 x 0.12 mil

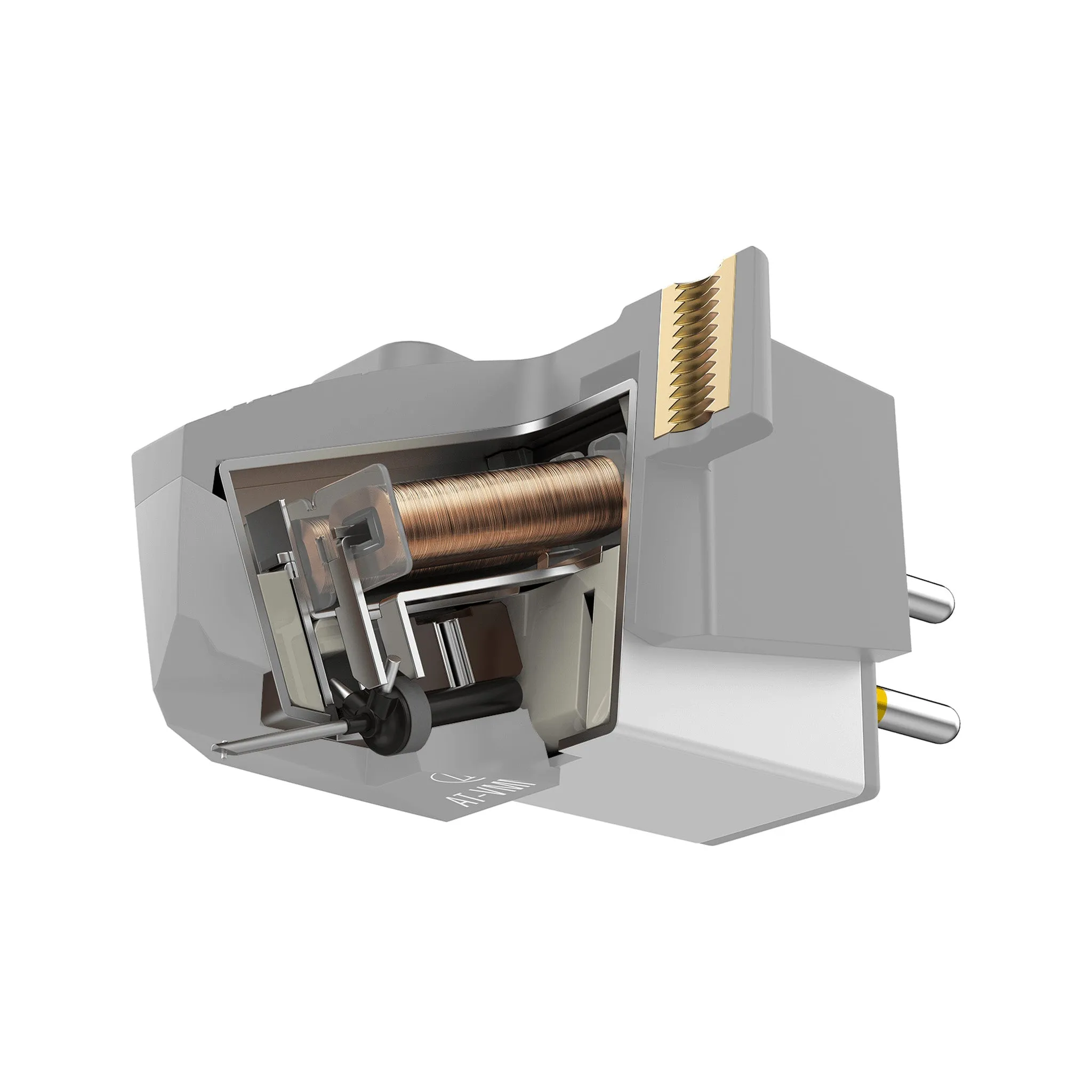

- Type: VM Stereo Dual Magnet
- Wire Used for Coil: T.P. Copper

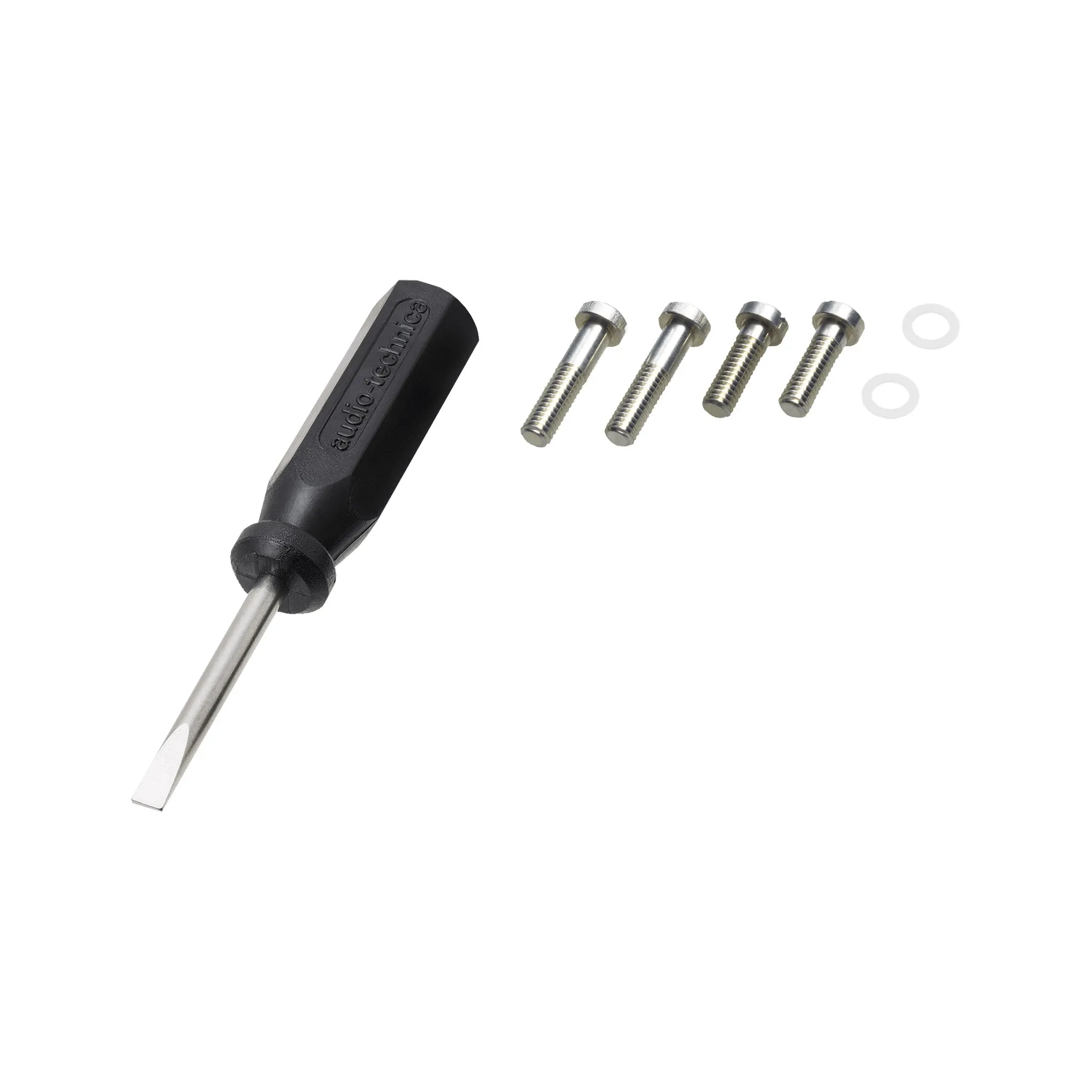

- Accessories Included: Two 11 mm Installation Screws, Two 8 mm Installation Screws, Two Tashers, Non-Magnetic Screwdriver
- Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
- Weight: 6.1 g (0.22 oz)
